Product Summary

The MSC1210Y5PAGR is a Precision Analog-to-Digital Converter (ADC) with 8051 Microcontroller and Flash Memory.

Parametrics

Absolute maximum ratings: (1)Input voltage AGND: -0.3 to AVDD + 0.3 V; (2)DVDD to DGND: -0.3 to +6 V; (3)AVDD to AGND: -0.3 to +6 V; (4)AGND to DGND: -0.3 to +0.3 V; (5)VREF to AGND: -0.3 to AVDD + 0.3 V; (6)Digital input voltage to DGND: -0.3 to DVDD + 0.3 V; (7)Digital output voltage to DGND: -0.3 to DVDD + 0.3 V; (8)Maximum junction temperature: 150 ℃; (9)Operating temperature range: -40 to +85 ℃; (10)Storage temperature range: -65 to +150 ℃.

Features

Features: (1)24 Bits No Missing Codes; (2)22 Bits Effective Resolution at 10Hz: Low Noise: 75nV; (3)PGA From 1 to 128; (4)Precision On-Chip Voltage Reference: Accuracy: 0.2%, Drift: 5ppm/℃; (5)8 Differential/Single-Ended Channels; (6)On-Chip Offset/Gain Calibration; (7)Offset Drift: 0.02ppm/℃; (8)Gain Drift: 0.5ppm/℃; (9)On-Chip Temperature Sensor; (10)Burnout Sensor Detection; (11)Single-Cycle Conversion; (12)Selectable Buffer Input.

Diagrams

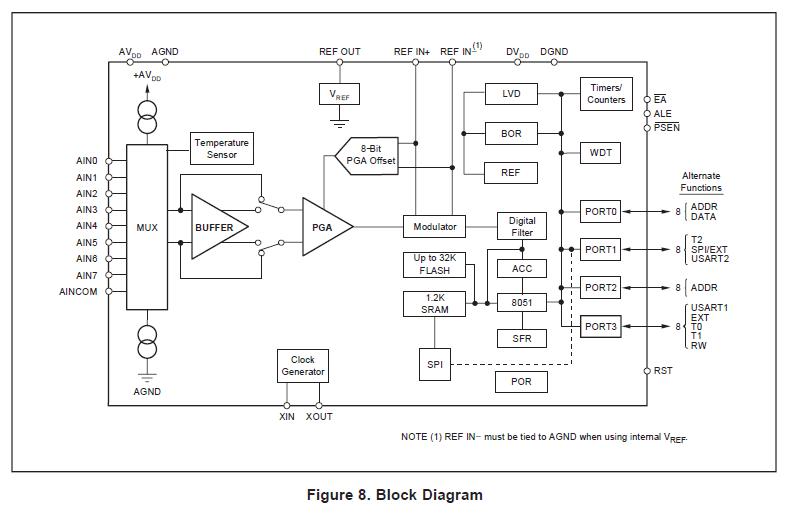

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MSC1210Y5PAGR
MSC1210Y5PAGR

Texas Instruments

ADC (A/D Converters) Prec ADC w/ 8051 Mcntrl & Flash

Data Sheet

0-1225: $9.46
1225-1500: $9.46
MSC1210Y5PAGRG4
MSC1210Y5PAGRG4

Texas Instruments

ADC (A/D Converters) Prec ADC w/ 8051 Mcntrl & Flash

Data Sheet

0-1225: $9.46
1225-1500: $9.46
