Product Summary
The PIC16F628A-I/SS is a Flash-Based, 8-Bit CMOS Microcontroller with nanoWatt Technology.
Parametrics
Absolute maximum ratings: (1)Ambient temperature under bias:-40℃ to +125℃; (2)Storage temperature:-65℃ to +150℃; (3)Voltage on VDD with respect to VSS:-0.3V to +6.5V; (4)Voltage on MCLR and RA4 with respect to VSS:-0.3V to +14V; (5)Voltage on all other pins with respect to VSS:-0.3V to VDD+0.3V; (6)Total power dissipation:800 mW; (7)Maximum current out of VSS pin:300 mA; (8)Maximum current into VDD pin:250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD):±20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD):±20 mA; (11)Maximum output current sunk by any I/O pin:25 mA; (12)Maximum output current sourced by any I/O pin:25 mA; (13)Maximum current sunk by PORTA and PORTB (Combined):200 mA; (14)Maximum current sourced by PORTA and PORTB (Combined):200 mA.
Features
Features: (1)Power-saving Sleep mode; (2)Programmable weak pull-ups on PORTB; (3)Multiplexed Master Clear/Input-pin; (4)Watchdog Timer with independent oscillator for reliable operation; (5)Low-voltage programming; (6)In-Circuit Serial Programming (via two pins); (7)Programmable code protection; (8)Brown-out Reset; (9)Power-on Reset; (10)Power-up Timer and Oscillator Start-up Timer ; (11)Wide operating voltage range (2.0-5.5V); (12)Industrial and extended temperature range.

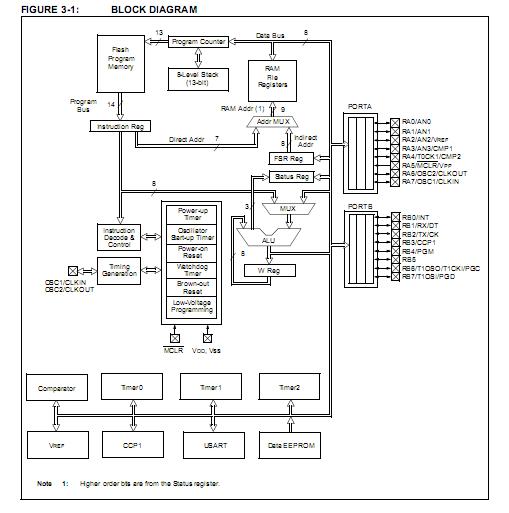

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

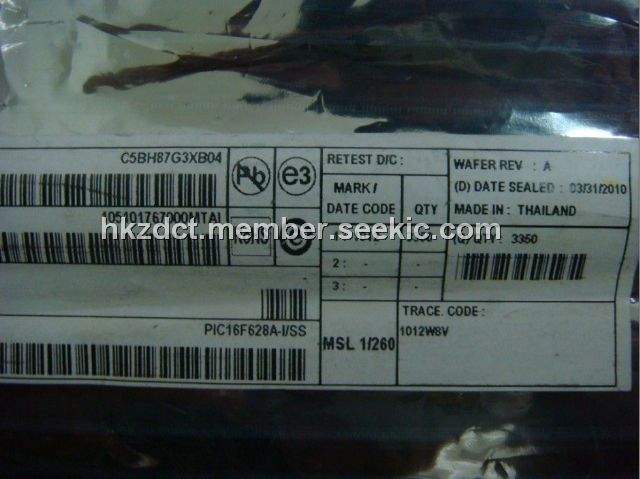

 PIC16F628A-I/SS |
Microchip Technology |
8-bit Microcontrollers (MCU) 3.5KB 224 RAM 16 I/O |
Data Sheet |
|
|
||||||||||||
