Product Summary
The AT89C51RD2-SLSUM is a high performance CMOS single chip 8-bit microcontroller. It contains a 64-Kbyte Flash memory block for code and for data.
Parametrics
Absolute maximum ratings: (1)I = industrial:-40℃ to 85℃; (2)Storage Temperature:-65℃ to + 150℃; (3)Voltage on VCC to VSS:-0.5V to + 6.5V; (4)VVoltage on Any Pin to VSS :-0.5V to VCC + 0.5V; (5)Power Dissipation:1 W.
Features
Features: (1)Asynchronous Port Reset ; (2)Full-duplex Enhanced UART with Dedicated Internal Baud Rate Generator; (3)Low EMI (Inhibit ALE); (4)Hardware Watchdog Timer (One-time Enabled with Reset-Out), Power-off Flag; (5)Power Control Modes: Idle Mode, Power-down Mode; (6)Single Range Power Supply: 2.7V to 5.5V; (7)Industrial Temperature Range (-40℃ to +85℃); (8)100K Write Cycles; (9)Dual Data Pointer; (10)Variable Length MOVX for Slow RAM/Peripherals; (11)Improved X2 Mode with Independent Selection for CPU and Each Peripheral; (12)Keyboard Interrupt Interface on Port 1; (13)SPI Interface (Master/Slave Mode); (14)8-bit Clock Prescaler.

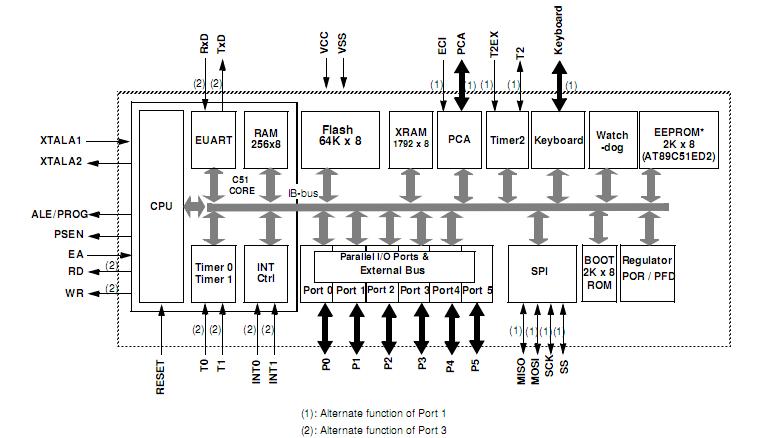

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT89C51RD2-SLSUM |
Atmel |
8-bit Microcontrollers (MCU) 64kB Flash 2048B RAM 2.7V-5.5V |
Data Sheet |
|
|
||||||||||||
