Product Summary
The MAX9206EAI is a 10-Bit Bus LVDS Deserializer which transforms a highspeed serial bus low-voltage differential signaling (BLVDS) data stream into 10-bit-wide parallel LVCMOS/ LVTTL data and clock.
Parametrics
Absolute maximum ratings: (1)AVCC, DVCC to AGND, DGND: -0.3V to +4V; (2)RI+, RI- to AGND, DGND: -0.3V to +4V; (3)All Other Pins to DGND: -0.3V to DVCC + 0.3V; (4)ROUT_ Short-Circuit Duration: Continuous; (5)Continuous Power Dissipation (TA = +70℃) 28-Pin SSOP (derate 9.5mW/℃ above +70℃): 762mW; (6)Operating Temperature Range: -40℃ to +85℃; (7)Junction Temperature: +150℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)ESD Rating (Human Body Model, RI+, RI-): ±8kV; (10)Lead Temperature (soldering, 10s): +300℃.
Features
Features: (1)Stand-Alone Deserializer (vs. SERDES) Ideal for Unidirectional Links; (2)Automatic Clock Recovery; (3)Allow Hot Insertion and Synchronization Without System Interruption; (4)BLVDS Serial Input Rated for Point-to-Point and Bus Applications; (5)Fast Pseudorandom Lock; (6)Wide Reference Clock Input Range: 16MHz to 40MHz.

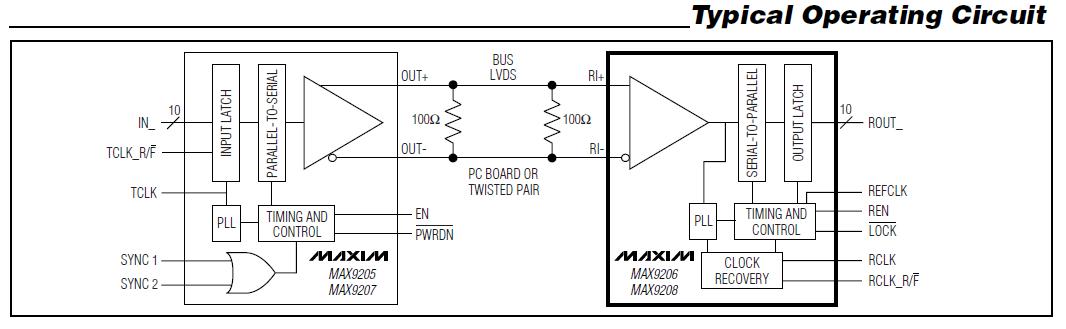

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX9206EAI |
Maxim Integrated Products |
LVDS Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX9206EAI/V+ |
Maxim Integrated Products |
Serializers & Deserializers (Serdes) Interface IC 10-Bit Bus LVDS Serializer |
Data Sheet |
|
|
||||||||||||
|
MAX9206EAI-T |
Maxim Integrated Products |
LVDS Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX9206EAI+ |
Maxim Integrated Products |
Serializers & Deserializers (Serdes) Interface IC 10-Bit Bus LVDS Serializer |
Data Sheet |
|
|
||||||||||||
|
MAX9206EAI/V+T |
Maxim Integrated Products |
Serializers & Deserializers (Serdes) Interface IC 10-Bit Bus LVDS Serializer |
Data Sheet |
|
|
||||||||||||
|
MAX9206EAI+T |
Maxim Integrated Products |
Serializers & Deserializers (Serdes) Interface IC 10-Bit Bus LVDS Serializer |
Data Sheet |
|
|
||||||||||||
