Product Summary

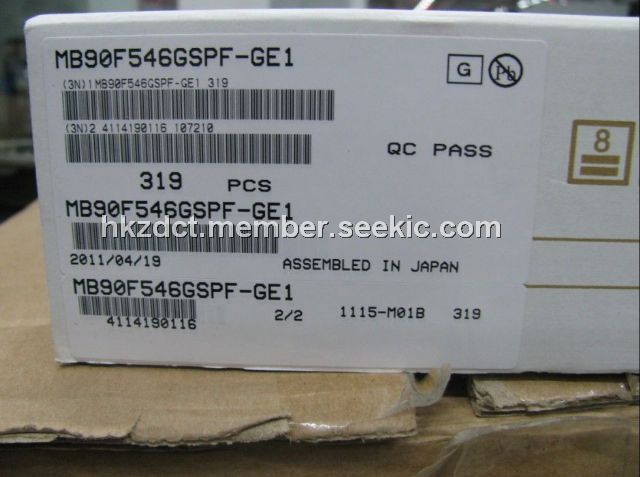

The MB90F546GSPF is a 16-bit Proprietary Microcontroller with FULL-CAN*1 and FLASH ROM. It is specially designed for automotive and industrial applications.
Parametrics
Absolute maximum ratings: (1)Power supply voltage: VSS - 0.3 to VSS + 6.0 V; (2)Input voltage: VSS - 0.3 to VSS + 6.0 V; (3)Output voltage: VSS - 0.3 to VSS + 6.0 V; (4)Maximum clamp current: - 2.0 to + 2.0 mA; (5)Total maximum clamp current: 20 mA; (6)Power consumption: 500 mW Flash device, 400 mW Mask ROM; (7)Operating temperature: -40 +85 ℃; (8)Storage temperature: -55 +150 ℃.
Features
Features: (1)Program patch function (for two address pointers); (2)Enhanced execution speed : 4-byte Instruction queue; (3)Enhanced interrupt function : 8 levels, 34 factors; (4)Automatic data transmission function independent of CPU operation; (5)Extended intelligent I/O service function (EI2OS).
Diagrams
 |
