Product Summary
The XC3S700A-4FTG256C is a Field-Programmable Gate Array which is specifically designed to meet the needs of high volume, cost-sensitive consumer electronic applications.
Parametrics
Absolute maximum ratings: (1)Internal supply voltage: –0.5 to 1.32 V; (2)Auxiliary supply voltage: –0.5 to 3.00 V; (3)Output driver supply voltage: –0.5 to 3.75 V; (4)Input reference voltage: –0.5 to VCCO+0.5 V; (5)Voltage applied to all User I/O pins and Dual-Purpose pins: –0.5 to VCCO+0.5 V; (6)Voltage applied to all Dedicated pins: –0.5 to VCCAUX+0.5 V; (7)Junction temperature: 125 ℃; (8)Soldering temperature: 220 ℃; (9)Storage temperature: –65 to 150 ℃.
Features
Features: (1)Revolutionary 90-nanometer process technology; (2)Very low cost, high-performance logic solution for high-volume, consumer-oriented applications; (3)SelectIO signaling; (4)Logic resources; (5)SelectRAM hierarchical memory; (6)Digital Clock Manager (up to four DCMs).

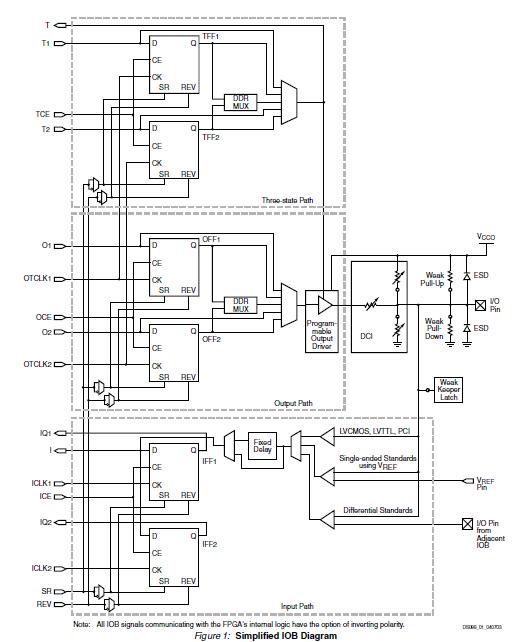

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC3S700A-4FTG256C |
|
IC FPGA SPARTAN-3A 256K 256FTBGA |
Data Sheet |
|
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
 |
XC3S1000 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
XC3S1000-4FG456I |
|
IC FPGA SPARTAN 3 456FBGA |
Data Sheet |
|
|
||||||||||
|
XC3S1000-4FG676I |
|
IC FPGA SPARTAN 3 676FBGA |
Data Sheet |
|
|
||||||||||
|
XC3S1000-4FGG320C |
|
SPARTAN-3A FPGA 1M STD 320-FBGA |
Data Sheet |
|
|
||||||||||
|
XC3S1000-4FGG320I |
|
IC SPARTAN-3A FPGA 1M 320-FBGA |
Data Sheet |
|
|
||||||||||
|
XC3S1000-4FGG456C |
|
IC SPARTAN-3 FPGA 1M 456-FBGA |
Data Sheet |
|
|
||||||||||
