Product Summary

The HMC544E is a low cost SPDT switch in 6-lead SOT26 packages for use in transmit-receive applications which require very low insertion loss at medium power levels.

Parametrics

Absolute maximum ratings: (1)RF Input Power (Vctl = 0/+5V): +39 dBm; (2)Control Voltage Range (A & B): -0.2 to +12 Vdc; (3)Hot Switch Power Level (Vctl = 0/+5V): +39 dBm; (4)Channel Temperature: 150 ℃; (5)Continuous Pdiss (T= 85 ℃) (derate 7.14 mW/ ℃ above 85℃): 0.465 W; (6)Thermal Resistance: 140 ℃/W; (7)Storage Temperature: -65 to +150 ℃; (8)Operating Temperature: -40 to +85 ℃; (9)ESD Sensitivity (HBM): Class 1A.

Features

Features: (1)Very Low Insertion Loss: 0.2 dB @ 1.0 GHz; (2)High Input P1dB: +39 dBm; (3)High Input IP3: +55 dBm; (4)Positive Control: 0/+3V to 0/+5V; (5)Compact SOT26 SMT Package.

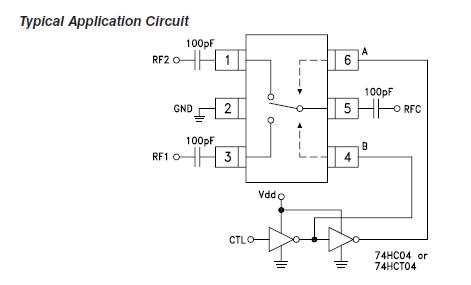

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HMC544E
HMC544E

IC MMIC GAAS SW SPDT SOT26
Data Sheet
0-1: $1.76
1-10: $1.57
10-25: $1.42
25-100: $1.29
100-250: $1.16
