Product Summary
The PS21869-AP is a Dual-In-Line Package Intelligent Power Module.
Parametrics
Absolute maximum ratings: (1)Supply voltage: 450 V; (2)Supply voltage (surge): 500 V; (3)Collector-emitter voltage: 600 V; (4)Each IGBT collector current: 50 A; (5)Each IGBT collector current (peak): 100 A; (6)Collector dissipation: 70.4 W; (7)Junction temperature: -20 to +125℃.
Features
Features: (1)For upper-leg IGBTS :Drive circuit, High voltage isolated high-speed level shifting, Control supply under-voltage (UV) protection; (2)For lower-leg IGBTS : Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC); (3)Fault signaling : Corresponding to an SC fault (Lower-leg IGBT) or a UV fault (Lower-side supply).; (4)Input interface : 3, 5V line CMOS/TTL compatible. (High Active); (5)UL Approved : Yellow Card No. E80276.

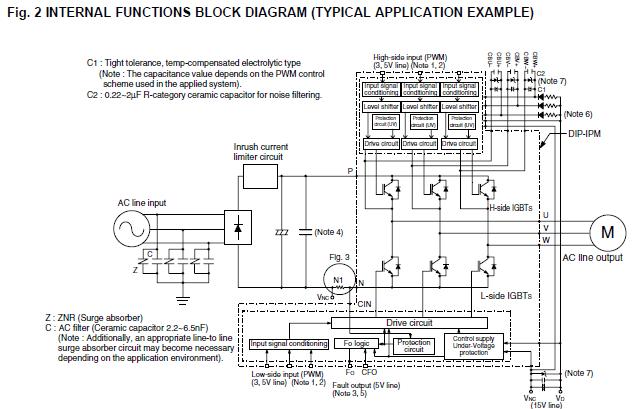

Diagrams
 |
